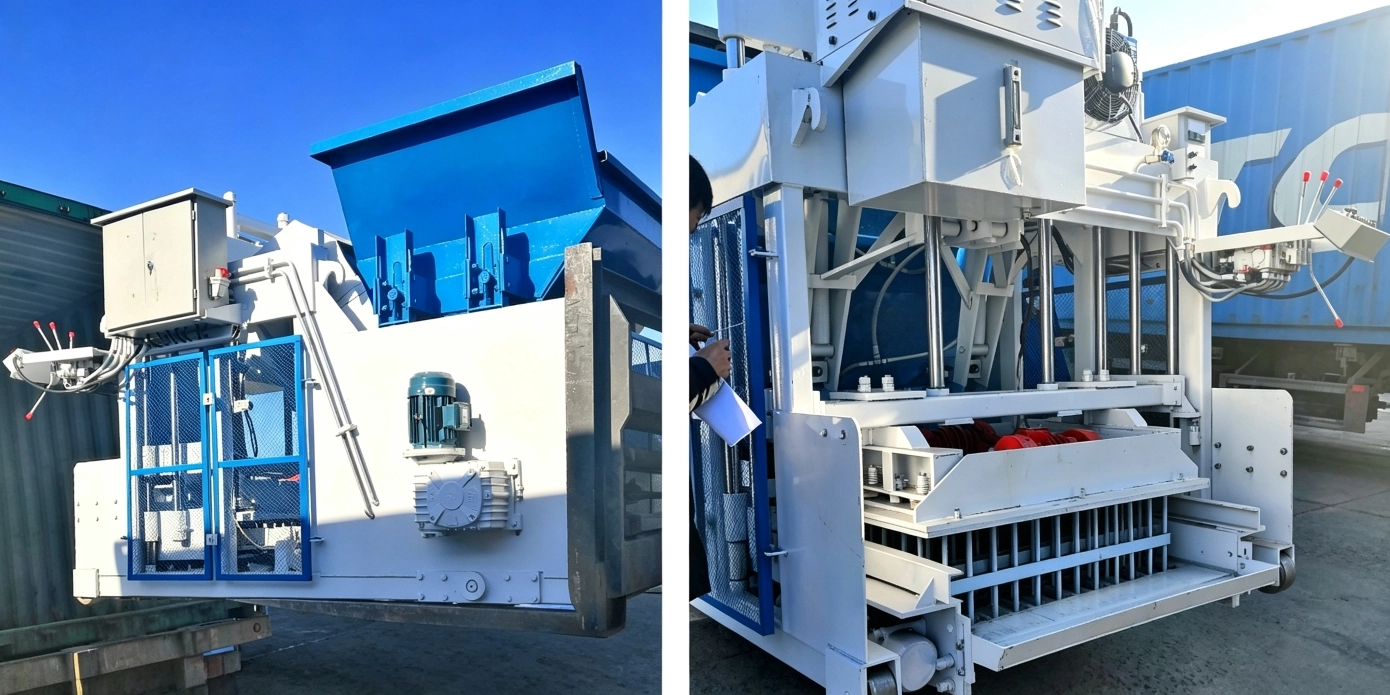

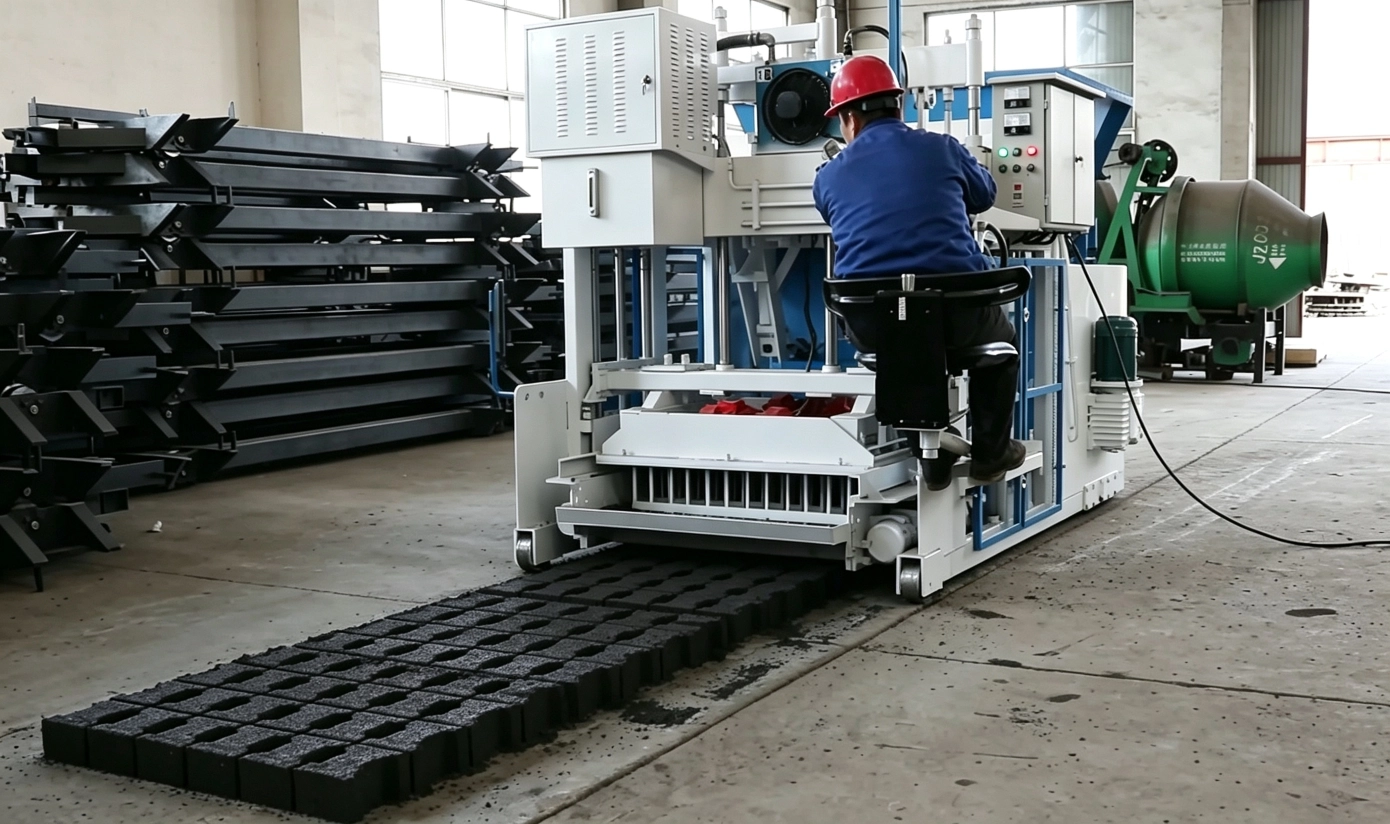

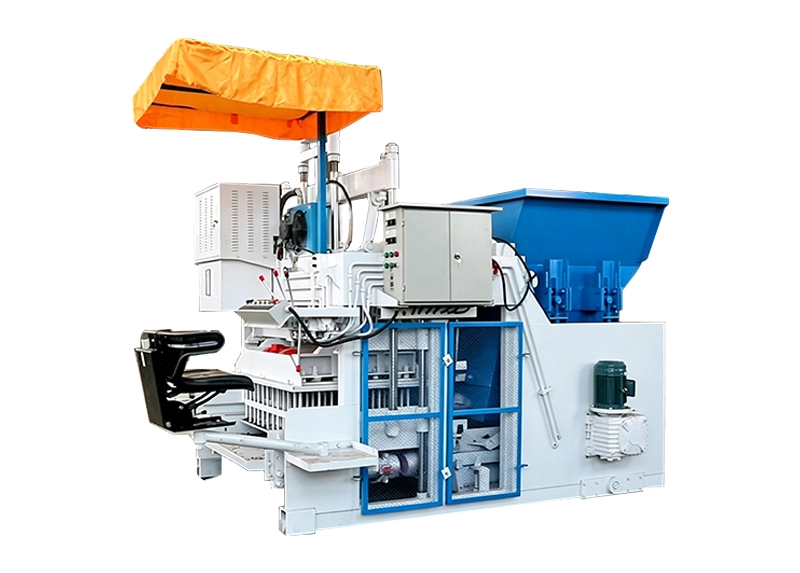

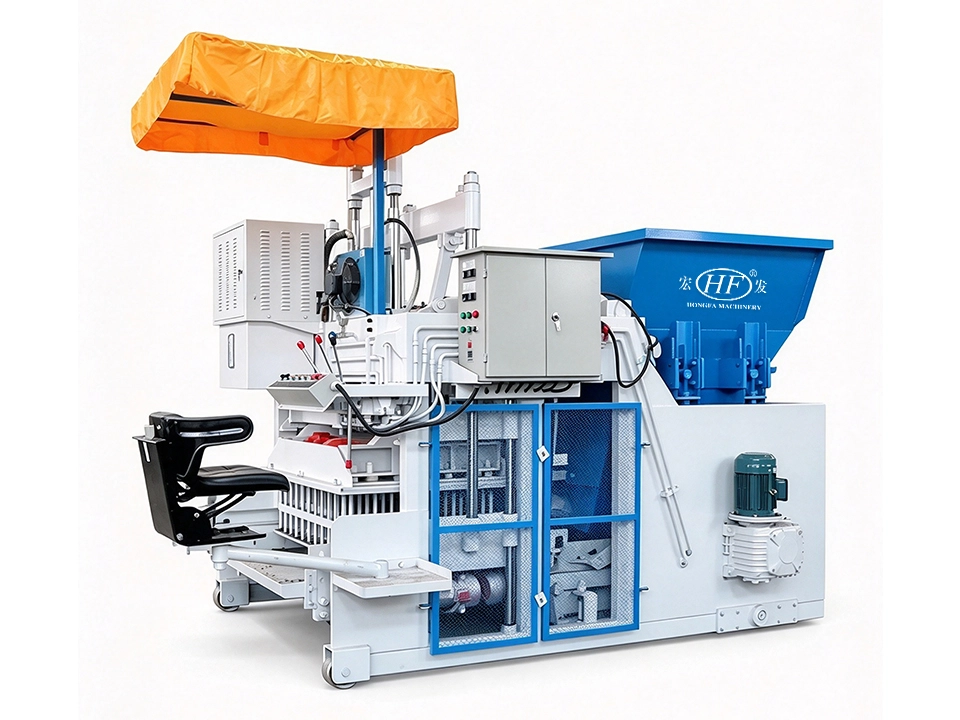

The QMJ-10A is a mainstream pallet-free egg-laying mobile block making machine in the industry, completely abandoning the traditional fixed block machine mode that relies on pallets and fixed production lines. Equipped with electric walking and hydraulic steering systems, the machine features flexible steering and stable movement. It requires no auxiliary equipment such as pallet conveying, recycling and maintenance systems. The green bricks can be directly formed and placed on the ground for natural curing, thoroughly eliminating the continuous costs of pallet purchasing, aging replacement, storage management and daily cleaning, which greatly reduces supporting investment and operating expenses. Different from traditional machines that require high-standard hardened floors and fixed assembly lines, this model has extremely strong site adaptability. It can be put into operation directly in open-air construction sites, simple temporary factories, rural flat open spaces, and remote field sites without complete infrastructure. With a compact body and flexible movement, it can be transferred and operated with engineering projects, perfectly adapting to mass production of small and medium-sized brick factories, supporting brick production for outdoor infrastructure, lightweight investment for individual entrepreneurship, and scattered overseas engineering projects with extremely low entry barriers and high site utilization.

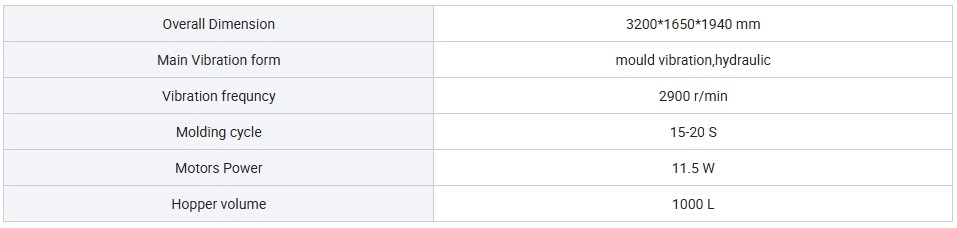

The machine is equipped with a core secondary high-frequency vibration molding system for the mold box, matched with a professional eccentric excitation structure. It delivers a vibration force of 55kN and a stable vibration frequency of 2900-3500r/min, combined with a standard hydraulic molding pressure of 16-21Mpa, forming a dual molding process of high-frequency vibration and hydraulic pressure. This design is superior to the single simple vibration mode of ordinary block machines. During operation, the raw materials can be evenly spread and fully vibrated to exhaust air, effectively solving common quality problems such as internal gaps, uneven compactness, loose surface, edge cracking and peeling of compressed earth and concrete mixtures. The secondary layered vibration technology enables raw material particles to be closely engaged and evenly compacted, ensuring finished bricks with accurate dimensions, regular edges, smooth surface and no burrs. The cured blocks feature uniform density, qualified compressive strength and high stability with a product qualification rate of over 99%. It can stably produce high-quality building blocks that meet international engineering standards using natural compressed earth, ordinary concrete, or solid waste mixtures mixed with fly ash, slag and recycled construction aggregate, greatly reducing production loss and rework costs to fully meet the high-standard material requirements of overseas municipal, infrastructure and slope protection projects.
The QMJ-10A block machine boasts powerful flexible production capacity. Adopting a modular replaceable mold design, it can switch to produce various building products quickly by replacing customized molds without modifying the whole machine structure, realizing multi-functional and multi-specification production and significantly improving investment cost performance. It can mass-produce dozens of mainstream building materials, including 390×190×190mm standard hollow blocks, various solid standard bricks, interlocking paving pavers, river slope protection bricks, garden grass-planting bricks and special-shaped permeable bricks. It widely adapts to overseas municipal road paving, building wall masonry, river ecological slope protection, garden landscape construction and rural infrastructure renovation projects. In terms of raw material adaptability, the machine is highly compatible. It is not limited to traditional cement and sand aggregate, but can fully utilize natural loess, compressed earth, stone powder, fly ash, industrial slag, crushed construction waste and other recycled solid waste materials. With extensive raw material sources, high utilization rate and low production energy consumption, it conforms to the global trend of green environmental protection and solid waste recycling. It effectively reduces customers’ raw material procurement costs and complies with overseas environmental policies, supporting customers to achieve low-cost and eco-friendly production.

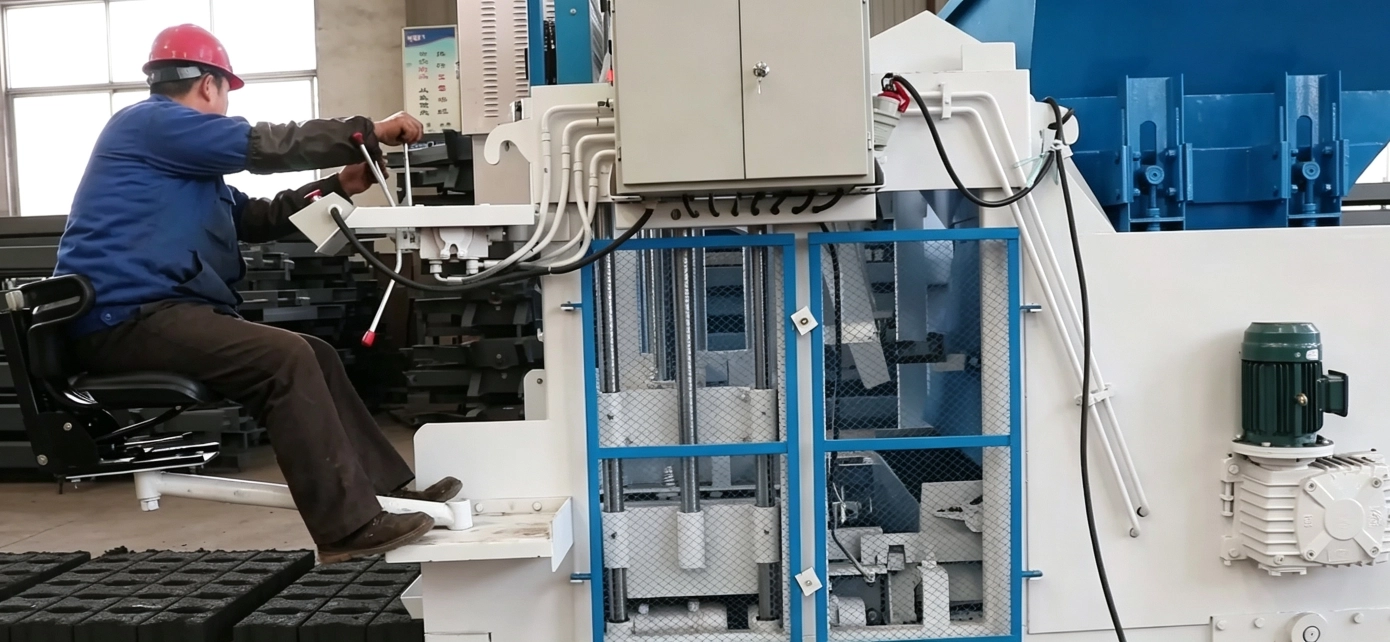

The whole machine adopts an integrated mechatronic-hydraulic control system, which highly integrates electric control, hydraulic transmission, mechanical vibration and automatic walking systems. It realizes full-process automatic linkage operation of material feeding, pressing, vibration, demolding, moving and brick placing without frequent manual intervention. Equipped with a simple intelligent control panel with intuitive functions and clear operation logic, the machine can be skillfully operated by ordinary workers after simple training without professional technical staff on duty, effectively saving labor recruitment, training and employment costs, and perfectly adapting to overseas production scenarios with uneven worker technical levels. Meanwhile, the machine features a thickened steel plate body and integrated welding structure. Core accessories such as hydraulic components, vibration motors and walking motors are high-quality parts with excellent protection performance, vibration resistance, wear resistance and high temperature resistance. It can adapt to harsh working conditions such as high temperature, dust and humidity in the field with stable operation and extremely low failure rate. Daily maintenance is extremely simple, only requiring regular inspection of hydraulic oil level, fastening of connecting bolts, lubrication of transmission parts and cleaning of the vibration mold box. No complex maintenance equipment or professional technical support is needed, featuring low long-term operation costs, convenient maintenance and long service life with excellent long-term production stability.

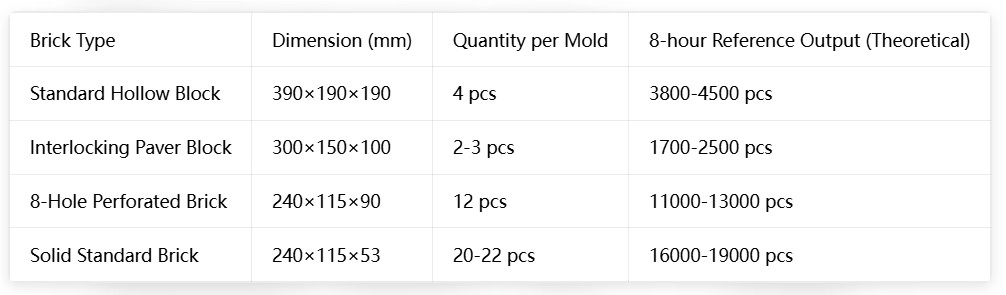

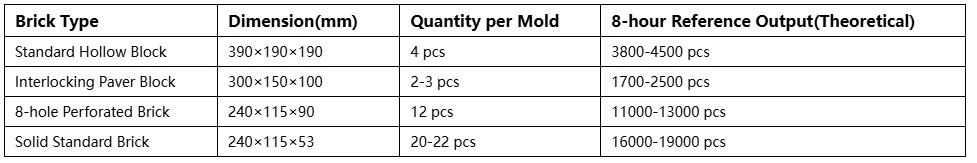

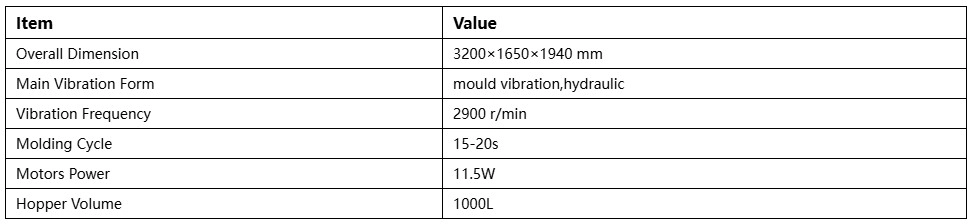

The QMJ-10A machine features core advantages of energy saving, high efficiency, low consumption and high output. With a total installed power of only 11.5kW and a frequency conversion energy-saving vibration system, it achieves low operating energy consumption and small no-load loss, saving considerable electricity costs in long-term operation. It delivers a remarkable energy-saving effect and lower daily operating costs compared with traditional block machines of the same production capacity. The stable molding cycle is 15-20 seconds per mold, with 4 standard hollow blocks per mold, achieving a stable output of 3800 to 4500 pieces per 8-hour working day, which fully meets the capacity requirements of mass supply for small and medium-sized brick factories, self-use of engineering projects and scattered order production. The compact body covers a small area without the need for large-scale standardized factory buildings, resulting in minimal early-stage infrastructure investment, short production cycle and quick commissioning after simple on-site debugging. With stable production capacity, ultra-low failure rate, low maintenance and production costs, the equipment has a much higher return on investment (ROI) and cost performance than traditional block machines of the same specification, featuring a short payback period. Thanks to the multiple advantages of lightweight investment, high-efficiency mass production, stable durability and low energy consumption, it has become the preferred core block making equipment for small and medium-sized building material entrepreneurship projects and infrastructure supporting projects in Africa, Southeast Asia, the Middle East and other overseas markets.
The QMJ-10A is a mainstream pallet-free egg-laying mobile block making machine in the industry, completely abandoning the traditional fixed block machine mode that relies on pallets and fixed production lines. Equipped with electric walking and hydraulic steering systems, the machine features flexible steering and stable movement. It requires no auxiliary equipment such as pallet conveying, recycling and maintenance systems. The green bricks can be directly formed and placed on the ground for natural curing, thoroughly eliminating the continuous costs of pallet purchasing, aging replacement, storage management and daily cleaning, which greatly reduces supporting investment and operating expenses. Different from traditional machines that require high-standard hardened floors and fixed assembly lines, this model has extremely strong site adaptability. It can be put into operation directly in open-air construction sites, simple temporary factories, rural flat open spaces, and remote field sites without complete infrastructure. With a compact body and flexible movement, it can be transferred and operated with engineering projects, perfectly adapting to mass production of small and medium-sized brick factories, supporting brick production for outdoor infrastructure, lightweight investment for individual entrepreneurship, and scattered overseas engineering projects with extremely low entry barriers and high site utilization.
The machine is equipped with a core secondary high-frequency vibration molding system for the mold box, matched with a professional eccentric excitation structure. It delivers a vibration force of 55kN and a stable vibration frequency of 2900-3500r/min, combined with a standard hydraulic molding pressure of 16-21Mpa, forming a dual molding process of high-frequency vibration and hydraulic pressure. This design is superior to the single simple vibration mode of ordinary block machines. During operation, the raw materials can be evenly spread and fully vibrated to exhaust air, effectively solving common quality problems such as internal gaps, uneven compactness, loose surface, edge cracking and peeling of compressed earth and concrete mixtures. The secondary layered vibration technology enables raw material particles to be closely engaged and evenly compacted, ensuring finished bricks with accurate dimensions, regular edges, smooth surface and no burrs. The cured blocks feature uniform density, qualified compressive strength and high stability with a product qualification rate of over 99%. It can stably produce high-quality building blocks that meet international engineering standards using natural compressed earth, ordinary concrete, or solid waste mixtures mixed with fly ash, slag and recycled construction aggregate, greatly reducing production loss and rework costs to fully meet the high-standard material requirements of overseas municipal, infrastructure and slope protection projects.
The QMJ-10A block machine boasts powerful flexible production capacity. Adopting a modular replaceable mold design, it can switch to produce various building products quickly by replacing customized molds without modifying the whole machine structure, realizing multi-functional and multi-specification production and significantly improving investment cost performance. It can mass-produce dozens of mainstream building materials, including 390×190×190mm standard hollow blocks, various solid standard bricks, interlocking paving pavers, river slope protection bricks, garden grass-planting bricks and special-shaped permeable bricks. It widely adapts to overseas municipal road paving, building wall masonry, river ecological slope protection, garden landscape construction and rural infrastructure renovation projects. In terms of raw material adaptability, the machine is highly compatible. It is not limited to traditional cement and sand aggregate, but can fully utilize natural loess, compressed earth, stone powder, fly ash, industrial slag, crushed construction waste and other recycled solid waste materials. With extensive raw material sources, high utilization rate and low production energy consumption, it conforms to the global trend of green environmental protection and solid waste recycling. It effectively reduces customers’ raw material procurement costs and complies with overseas environmental policies, supporting customers to achieve low-cost and eco-friendly production.
The whole machine adopts an integrated mechatronic-hydraulic control system, which highly integrates electric control, hydraulic transmission, mechanical vibration and automatic walking systems. It realizes full-process automatic linkage operation of material feeding, pressing, vibration, demolding, moving and brick placing without frequent manual intervention. Equipped with a simple intelligent control panel with intuitive functions and clear operation logic, the machine can be skillfully operated by ordinary workers after simple training without professional technical staff on duty, effectively saving labor recruitment, training and employment costs, and perfectly adapting to overseas production scenarios with uneven worker technical levels. Meanwhile, the machine features a thickened steel plate body and integrated welding structure. Core accessories such as hydraulic components, vibration motors and walking motors are high-quality parts with excellent protection performance, vibration resistance, wear resistance and high temperature resistance. It can adapt to harsh working conditions such as high temperature, dust and humidity in the field with stable operation and extremely low failure rate. Daily maintenance is extremely simple, only requiring regular inspection of hydraulic oil level, fastening of connecting bolts, lubrication of transmission parts and cleaning of the vibration mold box. No complex maintenance equipment or professional technical support is needed, featuring low long-term operation costs, convenient maintenance and long service life with excellent long-term production stability.
The QMJ-10A machine features core advantages of energy saving, high efficiency, low consumption and high output. With a total installed power of only 11.5kW and a frequency conversion energy-saving vibration system, it achieves low operating energy consumption and small no-load loss, saving considerable electricity costs in long-term operation. It delivers a remarkable energy-saving effect and lower daily operating costs compared with traditional block machines of the same production capacity. The stable molding cycle is 15-20 seconds per mold, with 4 standard hollow blocks per mold, achieving a stable output of 3800 to 4500 pieces per 8-hour working day, which fully meets the capacity requirements of mass supply for small and medium-sized brick factories, self-use of engineering projects and scattered order production. The compact body covers a small area without the need for large-scale standardized factory buildings, resulting in minimal early-stage infrastructure investment, short production cycle and quick commissioning after simple on-site debugging. With stable production capacity, ultra-low failure rate, low maintenance and production costs, the equipment has a much higher return on investment (ROI) and cost performance than traditional block machines of the same specification, featuring a short payback period. Thanks to the multiple advantages of lightweight investment, high-efficiency mass production, stable durability and low energy consumption, it has become the preferred core block making equipment for small and medium-sized building material entrepreneurship projects and infrastructure supporting projects in Africa, Southeast Asia, the Middle East and other overseas markets.
